Good quality semi automatic flat bed die cutting machine

FOB Reference Price:Get Latest Price
US $29,900-88,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Die-cutting Machine
Computerized:
Yes
Place of Origin:
Hebei, China (Mainland)
Brand Name:
keshun
Model Number:
PYP-1300.1500
Voltage:
380V 50Hz
Power(W):
11KW
Dimension(L*W*H):
5800*4000*2200mm
Weight:
13000kg
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Good quality semi automatic flat bed die cutting machine
Output paper:
High Grade Paper
Function:
Cardboard Automatic Die-cutting Machine
Application:
Paper Industry
Speed:
4500sheets/hour
Max paper size:
1300*960mm
min die cutting:
300mm
Color:
Requirement
SupplyAbility
SupplyAbility:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export package
Port
tianjin port
Lead Time :
20days
Product Description

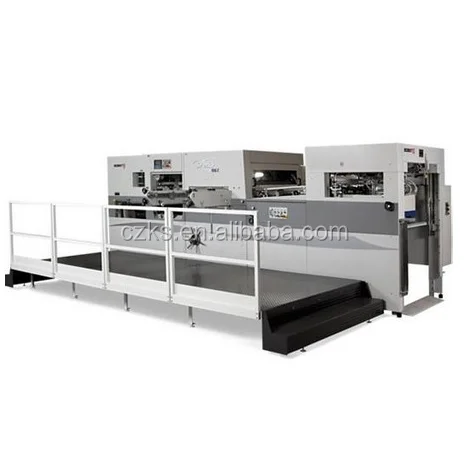

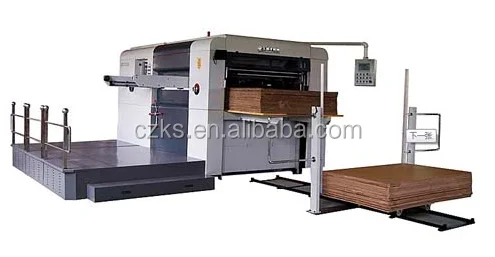

 Good quality semi automatic flat bed die cutting machine.

Feeding and Collecting Part

1. Whole machine is risen making the maximum front pile height up to 1400mm and the back pile height up to 1250mm

2. At the middle of head install the monitor ,worker can easily see the back

3. Pre-paper pile design and special pneumatic bench can save much time

4. The non-stop sampling system can check the board accurate without stop the machine

Main body

1. Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI

2. Patented design shock absorption system can prolong the life of main body and increase the pressure

3. The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack

Diecutting part and Delivery system

1. Diecutting chase fixed accurately by pneumatic lock system

2. Diecutting plate is putted in and out by air floating device

3. Electric clutch system of main chain can assure the chain steady when it is 4.topped at high speed

4. Main chain and assist chain is lubricated periodically controlled by PLC

5. Protection window of diecutting can hold the main body clean

6. Lightweight and durable aluminum alloy 9-piece gripper bars with chain of Renold UK ensure accurate

Technical Parameters:

Model

MY-1300

Max paper transmitting size

1320*940mm

Min paper transmitting size

400*500mm

Max die cutting size

1300*920mm

Min gripper size

6mm

Max die cutting pressure

300N/cm²

Paper processed

Ivory board

200-2000g/ m²

Corrugated board

8mm(max thickness)

Die cutting precision

±0.1mm

Max die cutting speed

4500 sheets/h

Max feeding pile height

1400mm(above the level)

Min feeding pile height

1250mm(above the level)

Total power

113.5kw

Total weight

14.5 T

Overall size

4200*2250*2250mm

 UC20180202191815UC20180202191714UC20180202191725

Packaging & Shipping

.png1 Plastic film package normally

2 If special packaging, pls tell us

3 Shipping: FOB, CNF&CIF
